Twin 6 Be

Rated 0 out of 5

0 Reviews

In stock

(-2%)

Key Features

Three-way monitoring design with dual 6.5" woofers and a Beryllium inverted dome tweeter for exceptional precision across the spectrum.
Wide frequency response (40Hz – 40kHz) and high SPL (115dB peak @1m), ensuring transparency and power for recording, mixing, and mastering.
Custom BASH® amplification: 150W RMS for bass, 150W RMS for midrange, and 100W RMS Class AB for treble, combining efficiency with sonic accuracy.
Premium build quality with Focal “W” composite sandwich cone technology, MDF construction, and elegant veneered finish for durability and acoustic neutrality.

Product details

Three-way monitor

The Twin6 Be is the best seller of the Focal Professional range and the most versatile work tool of the SM6 line. It represents the only necessary solution for recording, mixing and mastering. The image precision, treble definition as well as midrange neutrality are at the heart of its reputation. The excellent articulation of the bass and midbass registers, even at very high sound levels, makes it an unavoidable reference for engineers who require absolute transparency.

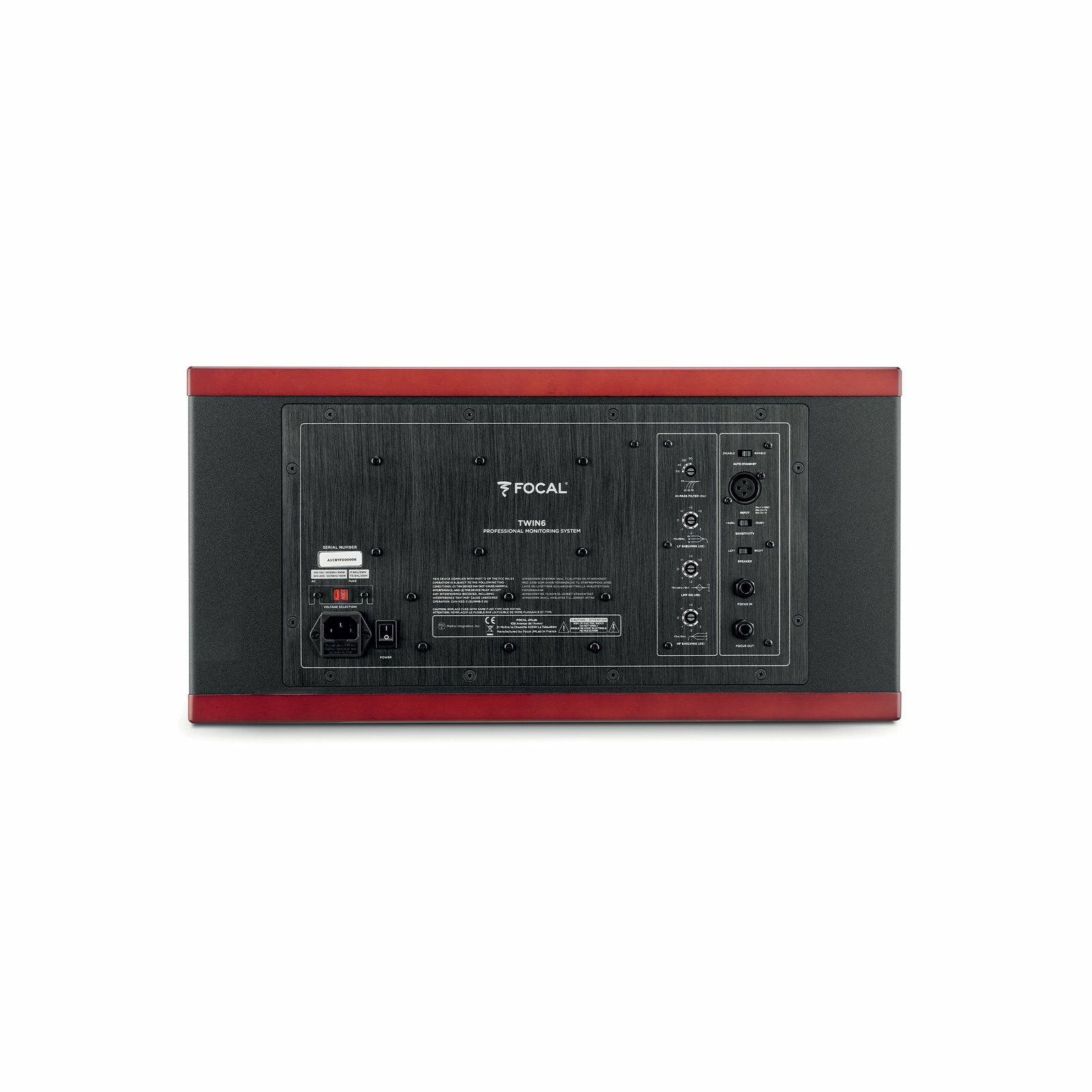

Furthermore, the design of the Twin6 Be permits a high SPL while at the same time offering a stable tonal balance. One of the two 6.5″ woofers works in large band (midrange – bass) whereas the other reproduces from 40 to 150Hz. This creates a bass that preserves all the signal dynamics, without any masking effect in the midrange, thereby keeping all its neutrality and transparency. Additional control of the bass register is accomplished by fine-tuning on the control plate on the back of the Twin6 Be in order to obtain a perfect mirror configuration with its mate.

The Twin6 Be can be installed vertically or horizontally to respond to the space requirements of each studio.

Beryllium inverted dome tweeter

The inverted dome tweeter is a hallmark of Focal. As a result of more than twenty years of development into a tweeter that could produce a high output, but without requiring high energy input and without increasing directivity. The introduction of the pure Beryllium dome, capable of covering 5 full octaves from 1,000 to 40,000Hz constitutes a new decisive advance regarding new audio formats. This tweeter capacity to reproduce high frequencies with unmatched speed and transparency. At first the pure Beryllium tweeter was only available on the very high-end digital speakers of the Focal Professional lines (SM8 & SM11), but is now featured on the new SM6 series, allowing an unprecedented price/performance ratio.

The “W” cone

Focal has been developing the technologies of composite sandwich cones for more than 15 years. The “”W”” process (Glass/Foam/Glass), used on the SM11, SM8 and SM6 lines, provides a true optimiza a true optimization of the frequency response by fine tuning of mass, rigidity and damping parameters. The balance between these 3 fundamental and often contradictory parameters is at the base of the outstanding sound neutrality of our speakers.

A custom designed amplification stage

Designing an amp to be integrated inside a speaker requires a very different set of rules than for a traditional amp. Speaker size and cooling concerns are often in contradiction with the high quality and high power requirements of a sonically transparent speaker. Our engineers used the BASH® technology to develop the bass/medium amplification circuit for the SM6 professional line of speakers. This was the only way to exploit the best of class AB style circuits (for exceptional quality) with a class D type yield, which is crucial when housing a 150W RMS circuit in such a small space (300W RMS for the Twin 6 and 350W RMS for the Sub6). A pure class AB circuit is sufficient to power the -less energy demanding- high frequency tweeter, allowing for an extremely wide bandwidth and exceptional accuracy.

Features

Performance

Frequency response: 40Hz – 40kHz
Maximum SPL: 115dB SPL (peak @ 1m)

Electronic Section

Inputs

Type / Impedance: Electronically balanced / 10 kOhms

Connector: XLR

Sensitivity: Adjustable, +4dBu or -10dBV

Amplification

Bass: 150W RMS, BASH® technology

Midrange: 150W RMS, BASH® technology

Treble: 100W RMS, Class AB

Power supply

Local supply: 230V (2A fuse) / 115V (4A fuse)

Connection: IEC inlet and detachable power cord

User controls and indicators

Input sensitivity selector

Midrange driver selector (right/left)

Adjustable tweeter and woofer levels by potentiometers

On/off switch, voltage selector

Light indicator: Power On LED

Transducers

Woofer: 2 × 6W4370B, 6.5″ (16.5cm) Focal “W” composite sandwich cone drivers
High frequency: TB871, Focal Beryllium inverted dome tweeter
Shielding: Integral through cancellation magnets/cans or by magnet design

Cabinetwork

Construction: 7.5″ (19mm) MDF panels
Finish: Dark red natural veneering side panels, black body
Dimensions (HxLxD): 9 13/16″ × 19 11/16″ × 13 3/8″ (250mm × 500mm × 340mm)
Weight: 30.8 lb (14 kg)
