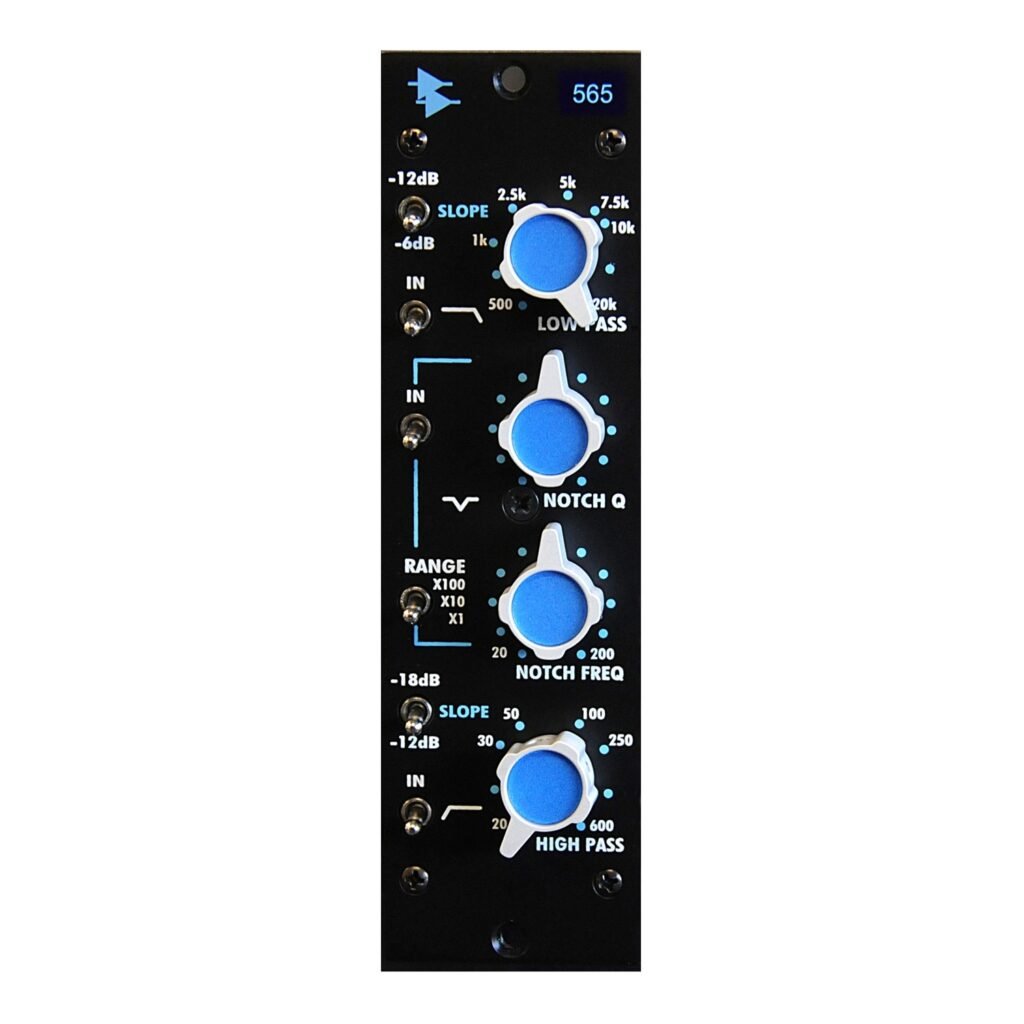

565 Filter Bank in detail
Features
- Sweepable low-pass filter (500Hz to 20kHz, -6 or -12dB slope)
- Sweepable high-pass filter (20Hz to 400Hz, -12 or -18dB slope)
- Variable notch filter with adjustable Q (fully sweepable between 20Hz and 20kHz)
- Individual bypass switches for each filter section
- Transformer Balanced Output to +28 dBu
- Uses API 2520 and 2510 Op-Amps as well as the same discrete transistor buffers used in the famous 550 series equalizers
The 565 Filter Bank module has circuits that are true to the musical filters of the famed 215 module found in large format API consoles.
565 Filter Bank specifications
| Specifications | |
| Number of Bands: | Three |
| Filter Types: | Sweepable Shelf Low Pass Sweepable Shelf High Pass Adjustable Active Twin-T Notch |
| Filter Frequencies: | Low Pass: 500Hz to 20kHz High Pass: 20Hz to 600Hz Notch: 20Hz to 20kHz (3 selectable ranges) |
| Notch Filter Q: | Variable from 0.95 to 15.3 |
| Notch Filter Cut: | > 40dB at minimum Q setting |
| Input Impedance: | > 20K Ohms, Balanced |
| Output Impedance: | 75 Ohms, Transformer Coupled, Balanced |
| Nominal Levels: | -15dBu to +15dBu |
| Clipping Level: | +28dBu |
| Frequency Response: | +.2, -.4, 20Hz to 20kHz |
| THD+N: | 0.02% (+4dBu output @ 2kHz) |
| Connector: | 15 position .156″ sp. edge connector |
| Power Consumption: | +/-16VDC, 100mA max at +24dBu out |
| Size: | 1.5″ x 5.25″ x 6.75″ Deep |
