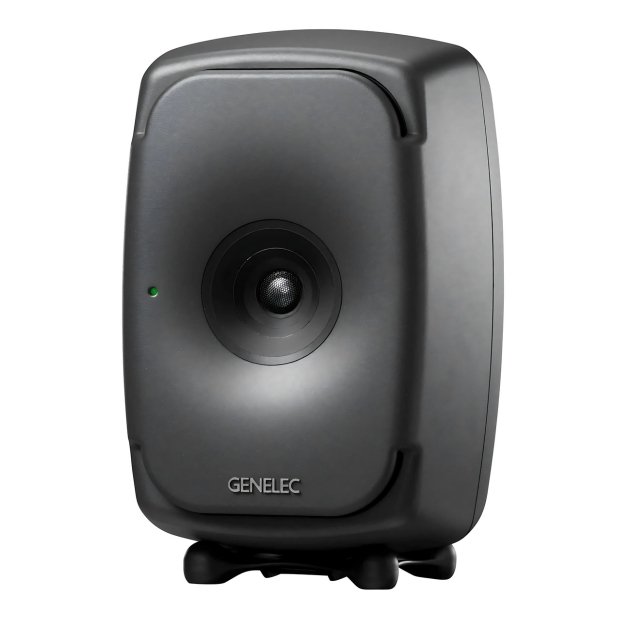

Genelec 8341A SAM Three-way Coaxial Monitor System

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance. For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging – a main contributor to listener fatigue – is minimised. As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully – every time.

General

1. Brand / Model: Genelec 8341A (The Ones Series, SAM™ family)
2. Type: 3-way coaxial active studio monitor
3. Applications: Nearfield/mid-field, small–medium control rooms, stereo/surround/immersive, music & post-production

Acoustic Performance

1. Max SPL: 110 dB (per pair @ 1 m, music material)
2. Frequency Response: 38 Hz – 37 kHz (–6 dB)
3. Accuracy: ±1.5 dB (45 Hz – 20 kHz)
4. Crossover: 490 Hz / 3.2 kHz
5. Directivity: MDC™ coaxial driver
6. Imaging: DCW™ waveguide, wide stable sweet spot
7. Phase: Linear phase crossovers
8. Distortion: Very low, even at high SPL

Amplification

1. Bass Amp: 250 W (Class D)
2. Midrange Amp: 150 W (Class D)
3. Treble Amp: 150 W (Class D)
4. Protection: ISS™, thermal & overload circuits
5. Calibration: SAM™ with GLM™ software

Drivers

1. Woofers: 2 × 170 × 90 mm oval
2. Midrange: 90 mm MDC coaxial
3. Tweeter: 19 mm metal dome (coaxial)

Connectivity

1. Analog: 1 × XLR balanced input
2. Digital: 1 × AES/EBU XLR input + 1 × AES/EBU XLR output (loop)
3. Control: 2 × RJ45 for GLM™ network
4. Calibration: Room EQ, distance delay, level alignment
5. Latency: Low-latency A/V sync

Enclosure

1. Material: Die-cast aluminium
2. Mounting: Iso-Pod™ included; wall/ceiling/stand options
3. Dimensions: H 370 × W 237 × D 243 mm
4. Weight: 9.8 kg (21.6 lb)
5. Finishes: Dark Grey, White, Raw Aluminium

Environmental

1. Auto Power Down: ISS™
2. Efficiency: EU ErP 2013 compliant
3. Operating Temp: 0 – 35 °C
4. Humidity: < 90% (non-condensing)
