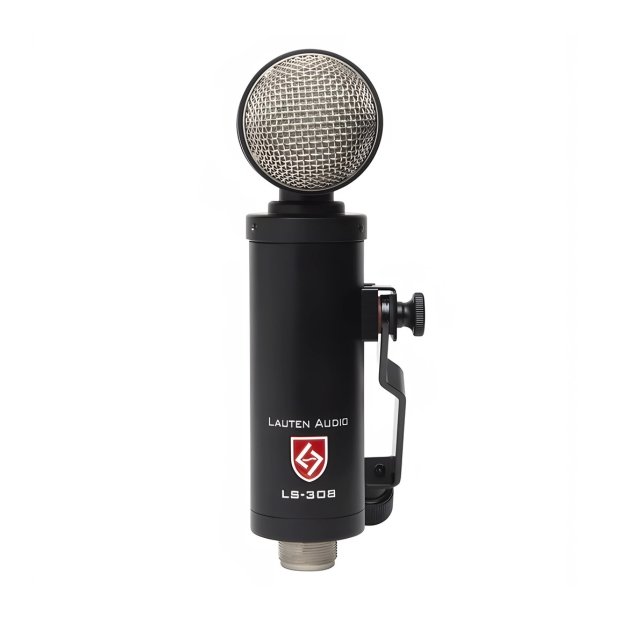

LAUTEN AUDIO LS-308

Description:

The Lauten Audio LS-308 is a noise-rejecting, high-dynamic-range, large-diaphragm condenser microphone that’s a real problem-solver in challenging scenarios where isolation is desired but difficult to achieve. Featuring a second-order cardioid polar pattern with 270 degrees of off-axis frequency rejection and ultra-high dynamic range, the LS-308 is designed for use in situations with leakage-prone, close-proximity sources — for example, tracking electric guitars in front of a live drum kit or miking the bottom of a snare. Constructed from top-drawer components and outfitted with frequency-shaping low- and highpass filters, the LS-308 offers excellent handling characteristics with its internally shock-mounted transducer element that minimizes rumble and handling noise. The Lauten Audio LS-308 ships with two different mounting options, a foam windscreen, and a road case.

Features:

• Second-order cardioid polar pattern with 270° of off-axis rejection
• Provides superior isolation in noisy, close-quarter environments
• 135dB of dynamic range without the need for additional attenuation
• Internally shock-mounted transducer element minimizes rumble and handling noise
• Frequency Range: 20Hz–20kHz
• SPL handling: >135dB (0.5%THD at 1kHz)
• Independent 2-stage low- and high-cut frequency switches
• Internally shock-mounted pressure gradient condenser elements
• Swing-arm mount with 135° of movement (removable)
• Included road case, swing-arm mount, threaded hard mount, foam windscreen

Specification

• Microphone Type:  Dual-Gradient Condenser
• Polar Pattern: Second-order Cardioid (270° side/rear rejection)
• Diaphragm Size: 1.25″ (32mm)
• Frequency Range: 20Hz-20kHz
• Max SPL: 135dB SPL
• Output Impedance: 150 ohms
• Sensitivity: 10.5mV/Pa (-40dB)
• Self Noise: 15dB A weighted
• Low Cut Filter: 50Hz, 120Hz
• Connector: XLR
• Color: Black
• Power Source: 48V phantom power
• Dimensions: 7.25″ x 2.46″
• Weight: 1.25 lbs.
• Included Accessories: Windscreen, Mic Mount, Flight Case
• Manufacturer Part Number: LS308002
