Product details

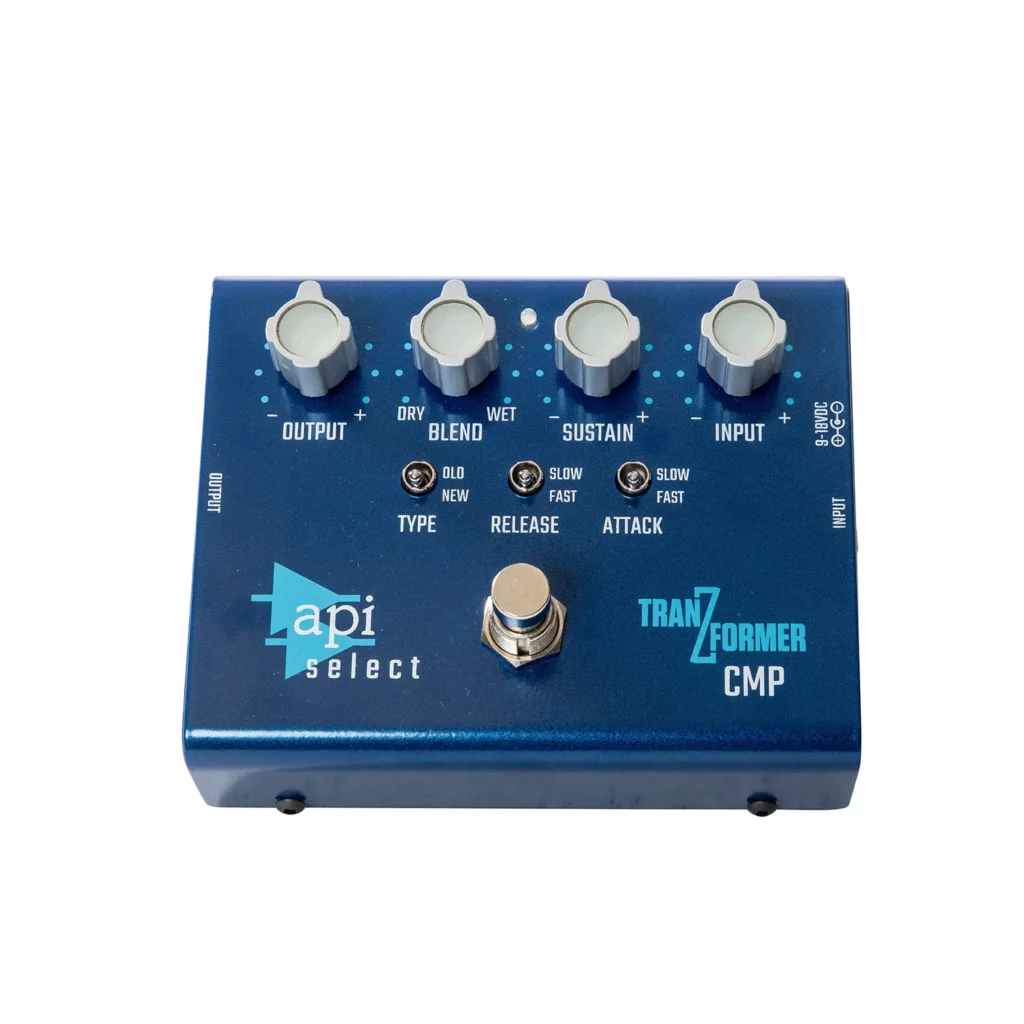

TranZformer CMP Compressor Pedal in detail
Features
- Signature API output transformer
- Adjustable attack and release times
- Wet/dry blend control
- Selectable feedback/feedforward compressor styles
- Buffered bypass
The API Select TranZformer® CMP incorporates API’s legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out foot switch, adjustable attack and release times, wet/dry blend control, selectable “feedback” and “feedforward” compressor styles, transformer output, and of course the classic API sound.
TranZformer CMP Compressor Pedal specifications
| Input Connection: | 1/4″ Hi-Z unbalanced instrument input |
| Input Impedance: | 1MΩ |
| Bypass: | Yes, buffered, 0dB |
| Output Connections: | 1/4″ Hi-Z unbalanced output |
| Output Impedance: | Hi-Z output: Less than 1kΩ |
| Input Gain Control: | 9dB – 30dB, Variable |
| Output Level Control: | -inf. to 0dB, Variable |
| Max Output Level Before Clipping: |
+15dBu (9VDC)
+22dBu (18VDC)
|
| Frequency Response: | +0dB, -1dB, 20-20kHz |
| Compressor: |
Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting.
Attack (switched): FAST (1ms) or SLOW (10ms)
Release (switched): FAST (300ms) or SLOW (1s)
TYPE (switched): New (Feed-forward), OLD (Feed-back)
|
| Power Supply: | 9-18VDC @ 100mA |
| Size: | 4.6” x 3.8” x 3” |
| Size (Boxed for Shipping): | 6” x 4.5” x 4.5” |
| Actual Weight: | 1.5 lbs |
| Shipping Weight: | 2 lbs |
