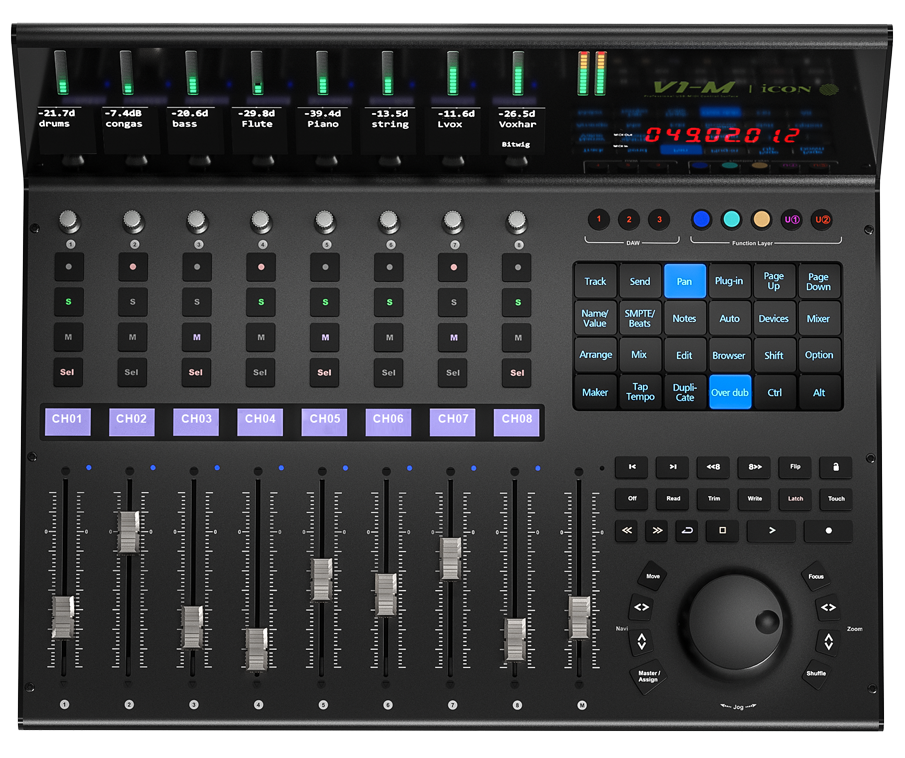

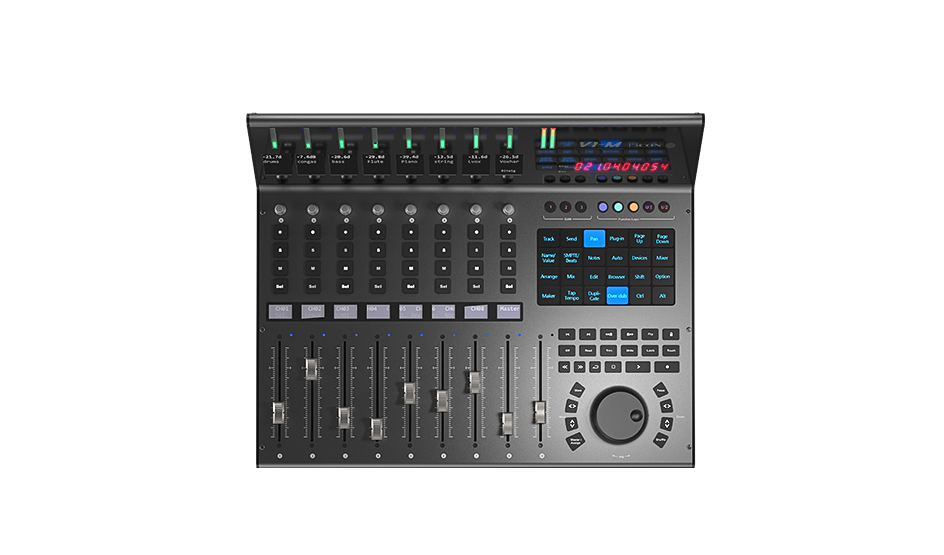

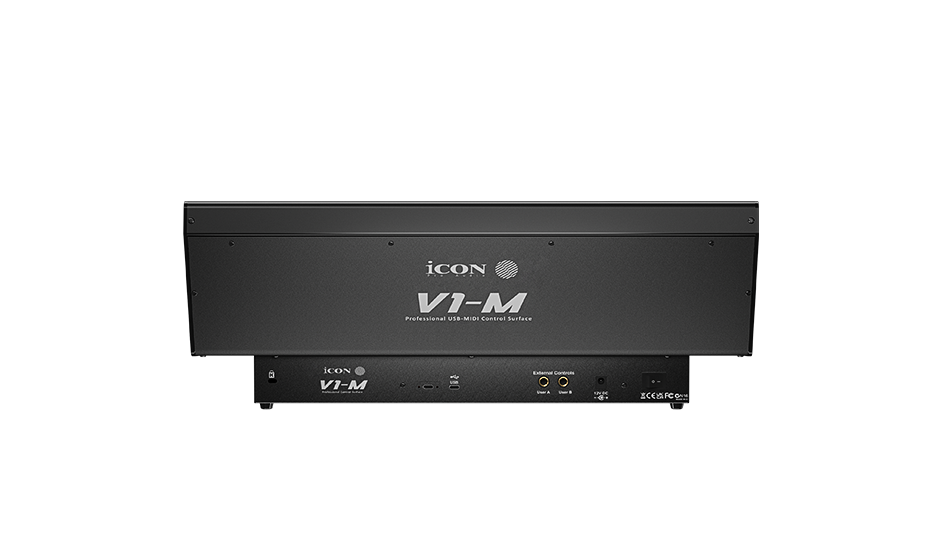

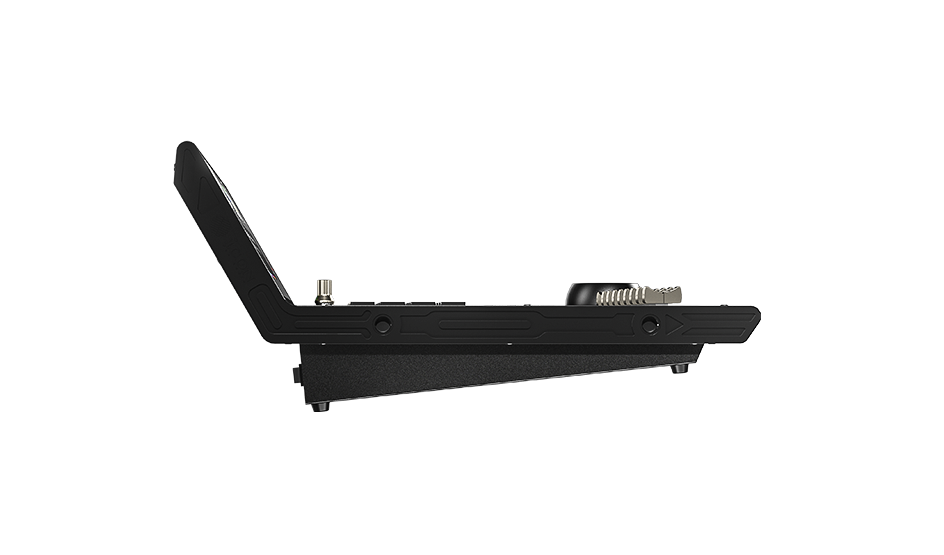

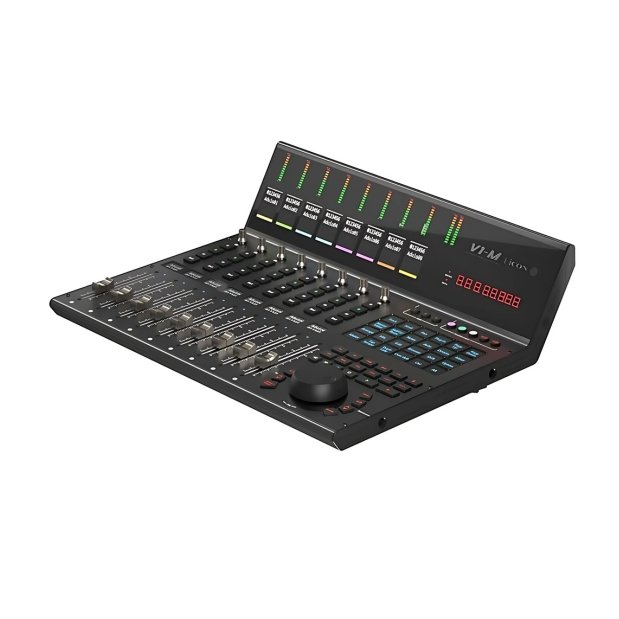

V1-M

V1-M

The V1-M is a powerful DAW controller that gives you tactile control of your Digital Audio Workstation, helping you streamline your workflow and get your projects done faster.

Here are some of the features that will make the V1-M work for you:

Hands On Control
The V1-M has 8 channels of motorized faders, expandable up to 64 channels (depending on your DAW) with the optional V1-X DAW Control Expanders. This ensures plenty of control, even for complex projects.

Customizable Touchscreen
A large touchscreen with 5 color-coded layers of commands allows you to tailor the workflow to your needs. Quickly access controls without losing focus on your mix.

TFT Display and Meter Bridge
Large TFT display and meter bridge provide clear level, pan, and mix information—ideal for working without relying solely on your computer monitor.

Integration with Popular DAWs
Compatible with Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, Pro Tools, and more. Control up to 3 DAWs simultaneously with no workflow interruptions.

Applications

Recording & Mixing
Motorized faders and touchscreen navigation simplify large sessions. Zoom in/out and monitor track levels easily via the TFT screen and meter bridge.

Content Creation
Faders, knobs, and customizable touchscreen controls give fast access to essential commands for efficient content creation.

Music Production
Enhances creativity by offering a tactile, customizable workflow that feels more connected to the music.

Post Production & Sound Design
Expandable up to 64 channels for complex projects—perfect for dialogue-heavy mixes, foley, or sound design.

V1-X DAW Control Expander

Expand your V1-M to 16, 32, or 64 channels (DAW dependent).
Each V1-X includes:

• 8x touch-sensitive motorized faders with 12-bit resolution
• 8x dual-function encoder knobs
• Mute, Solo, Select, and Record buttons
• TFT display per channel + LED meter bridge
• Robust metal casing and secondary LCD display

What’s in the Package?

• V1-M Master MIDI Control Surface
• USB Type-C Cable
• External Power Adapter
• Quick Start Guide

Features

• 9x touch-sensitive motorized faders (12-bit resolution)
• Large 7″ programmable touchscreen with 24 panels × 5 color modes (120 functions)
• iMap™ software for drag-and-drop DAW customization in real time
• Operates with up to 3 DAWs simultaneously
• Onboard 2″ TFT display (channel names, values, colors – DAW dependent)
• LED meter bridge with clear visual feedback
• Additional 1.14″ TFT display per channel (DAW dependent)
• Optical encoder jog wheel for precise navigation & scrubbing
• 8x dual-function encoder knobs (rotate + enter)
• 2-segment LED display (timecode/project position in SMPTE or beat clock)
• Illuminated function buttons: Read, Write, Touch, Latch, Trim, Off
• Channel control buttons: Mute, Solo, Record
• Transport buttons: Play, Stop, Record, Rewind, Fast Forward, Loop
• Master/Assign button for flexible fader control
• Zoom & navigation buttons (with jog wheel integration)
• Focus button for plug-in & EQ control via jog wheel
• Track & Bank buttons (channel selection + 8-channel shifts)
• Mackie Control & HUI protocol support
• Compatible with major DAWs: Ableton Live, Bitwig, Cubase/Nuendo, Pro Tools, Logic Pro, FL Studio, Reaper, Studio One, and more
• USB-C high-speed connectivity with firmware upgrades via iMap™
• ¼-inch footswitch pedal inputs (User A & B)
• Robust metal casing with Kensington lock port

Tech Specs

• Connector: USB (standard type, to computer)
• Power Supply: 12V 2.5A DC (Outside negative, inside positive)
• Current Consumption: 2.5A or less
• Weight: 5.6 kg (12.3 lb)
• Dimensions (mm): 485 (W) × 384.5 (D) × 178 (H)
• Dimensions (inch): 19.09″ (W) × 15.14″ (D) × 7″ (H)
