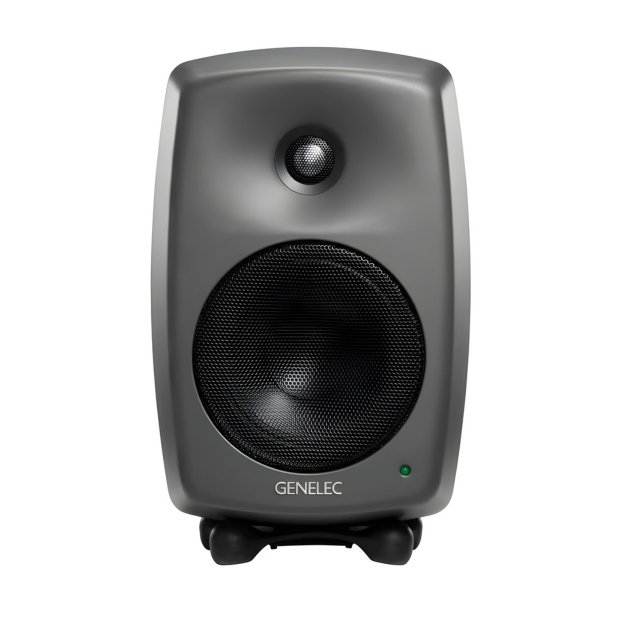

Genelec 8330A SAM Two-way Monitor System

Genelec 8330A

Combining precision, adaptability and a small footprint, the 8330A offers colour-free performance and powerful room compensation features.

Key Technologies

• Intelligent Signal Sensing (ISS™) Technology
• Directivity Control Waveguide (DCW™) Technology
• Active Crossovers
• Iso-Pod™ Stand
• Optimised Amplifiers
• Protection Circuitry
• Reflex Port Design
• Smart Active Monitor (SAM™) Systems
• Versatile Mountings
• Minimum Diffraction Enclosure (MDE™) Technology

The professional’s choice

The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A’s wide uncoloured sweet spot means you are always in a position to make accurate, reliable mix decisions.

Truly optimised monitoring

As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8330A is your compact but clever monitoring companion.

SPECIFICATIONS

• Frequency Response: 58 Hz – 20 kHz (± 1.5 dB)
• Low cutoff -6Db: 45 Hz
• High cutoff -6dB: 23 kHz
• Peak SPL: ≥110 dB
• Short term max SPL: ≥104 dB
• Long term max SPL: ≥96 dB
• Self-generated noise: ≤5 dB SPL
• Height: 285 mm (11 7/32 in)
• Height with Iso-Pod: 299 mm (11 25/32 in)
• Width: 189 mm (7 7/16 in)
• Depth: 178 mm (7 in)
• Weight: 5.5 kg (12.1 lb)
• Enclosure material: Die cast aluminium
• Enclosure type: Reflex port
• Bass Driver type: Cone
• Bass Diameter: 130 mm (5 1/8 in)
• Treble Driver type: Metal dome
• Treble Diameter: 19 mm (3/4 in)
• Harmonic distortion: 50…200 Hz ≤3 %, > 200 Hz ≤0.5 %
• 8330A bass amplifier: 50 W Class D
• 8330A treble amplifier: 50 W Class D
• Mains voltage: 100-240 VAC 50/60Hz
• ISS Active: ≤0.5 W
• Idle: ≤3 W
• Full output: 50 W
• Input: Analog signal input connector XLR female, balanced 10 kOhm.
• Input: XLR female IN
• Output: XLR male OUT
• 2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
• Output: XLR male OUT
